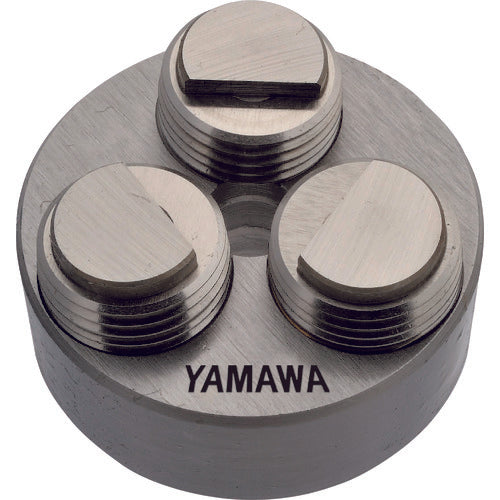

Yamawa New Rolling Die N-RSD R5 M6X1 30 Diameter N-RSD-R5-M6X1-30 1 pc

Catalog number: N-RSD-R5-M6X1-30 Features: ●This rolling die can process high-precision male threads with a beautiful finish without generating cutting chips by thread processing using plastic processing. ●Improves work efficiency and greatly improves tool life in "male thread processing of P=0.5 or more", which could not be solved with conventional rolling dies. ●Compared to conventional products, the engagement load has been significantly reduced and the tool life has been improved. ●Ideal for processing small quantities of many types of screws and small diameter long screws that are difficult to handle with rolling rollers. ●We recommend using it on an automatic lathe, lathe, or machining center. Applications: ●For male thread processing. Specifications: ●Nominal size: M6 ●Pitch (mm): 1 ●Outer diameter (mm): 30 ●Thickness (mm): 11 ●Processing screw: Metric screw ●Accuracy: R5 ●Number of engagement threads: 2 ●Surface treatment: Non-coated Material/Finish: ●High-speed tool steel (HSS)
