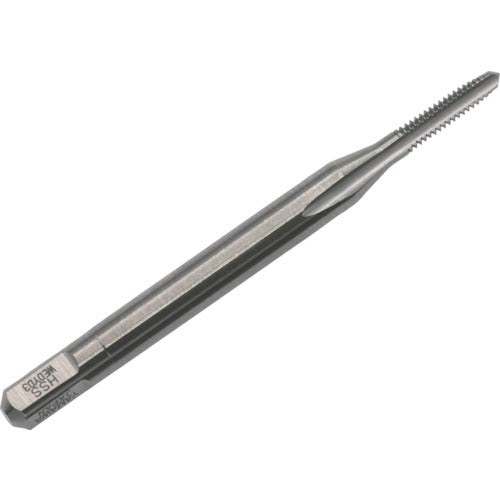

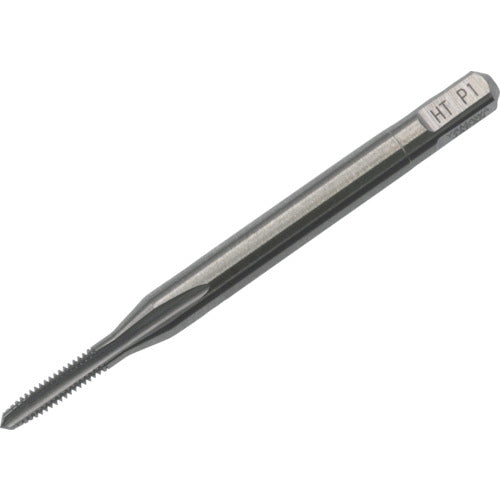

Yamawa Hand Tap HT P1 1/16SM80 5P HT-P1-1/16SM80-5P 1 piece

Catalog number: HT-P1-1/16SM80-5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting material: Medium carbon steel. Specifications: ● Tip: Medium ● Precision: P1 ● Precision notation: P grade ● Nominal dimensions: SM1/16 ● Thread length (mm): 6.3 ● Overall length (mm): 36 ● Shank diameter (mm): 3 ● Shank square section (mm): 2.5 ● Pilot hole diameter (mm): 1.26 ● Number of threads: 80 ● Machined thread: Machine thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Number of engaging threads: 5 Material/Finish: ● High-speed tool steel (HSS)
