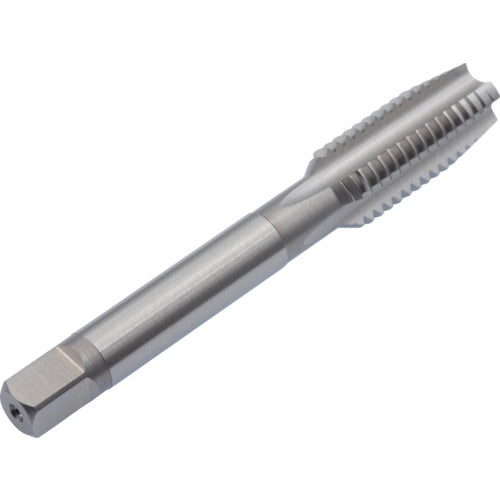

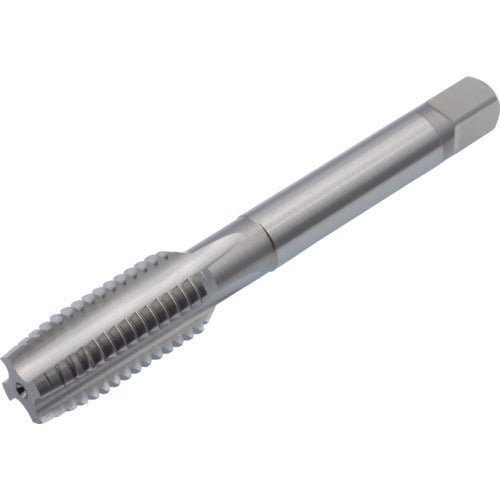

Yamawa Hand Tap HT P3 3F 5/16W18 5P HT-P3-3F-5/16W18-5P 1 piece

Catalog number: HT-P3-3F-5/16W18-5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Medium ● Precision: P3 ● Precision notation: P grade ● Nominal dimensions: W5/16 ● Thread length (mm): 19 ● Overall length (mm): 70 ● Shank diameter (mm): 6.2 ● Shank square section (mm): 5 ● Pilot hole diameter (mm): 6.59 ● Number of threads: 18 ● Machined thread: Whitworth thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Number of engaging threads: 5 ● Shank length (mm): 36 ● Length of shank square section (mm): 8 Material/Finish: ● High-speed tool steel (HSS)
