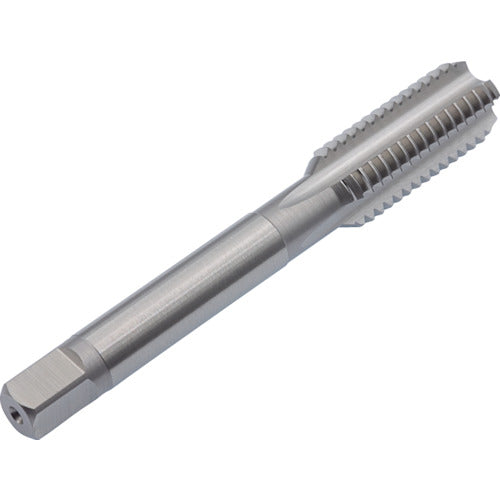

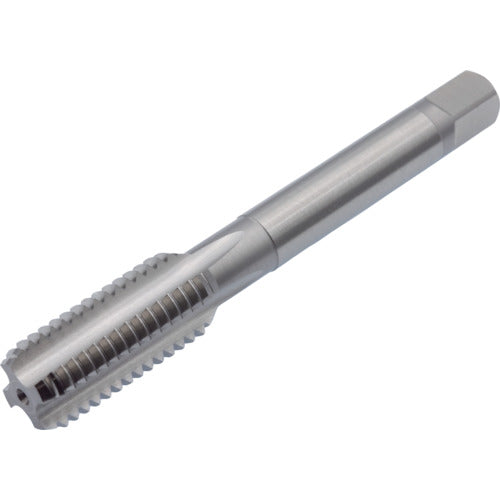

Yamawa Hand Tap HT P3 3F M10X1.25 1.5P HT-P3-3F-M10X1.25-1.5P 1 piece

Catalog number: HT-P3-3F-M10X1.25-1.5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Top ● Precision: P3 ● Precision notation: P grade ● Nominal dimensions: M10 ● Pitch (mm): 1.25 ● Thread length (mm): 23 ● Total length (mm): 75 ● Shank diameter (mm): 7 ● Shank square section (mm): 5.5 ● Pilot hole diameter (mm): 8.85 ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Number of engaging teeth: 1.5 teeth ● Shank length (mm): 38 ● Length of shank square section (mm): 8 Material/Finish: ● High-speed tool steel (HSS)
