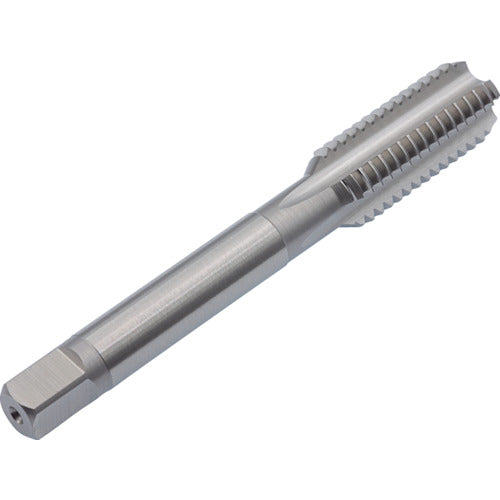

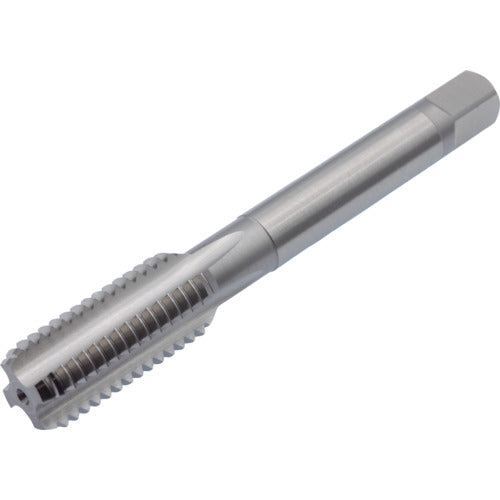

Yamawa Hand Tap HT P3 3/8-24UNF 1.5P HTP-UNF-3/8-3 1 piece

Catalog number: HTP-UNF-3/8-3 Features: ● Unified thread taps are used in a wide range of applications. Applications: ● Workpiece materials: carbon steel, tool steel, cast steel, cast iron, ductile iron, brass, aluminum alloy castings, zinc alloy castings, tempered steel, brass castings. Specifications: ● Tip: Top ● Precision: P3 ● Precision notation: P grade ● Nominal dimensions: UNF3/8 ● Thread length (mm): 23 ● Total length (mm): 75 ● Shank diameter (mm): 7.0 ● Shank square section (mm): 5.5 ● Pilot hole diameter (mm): 8.57 ● Number of threads: 24 ● Machined threads: Unified threads ● Surface treatment: Non-coated ● Tap grade: P grade Material/Finish: ● High-speed tool steel (HSS)
