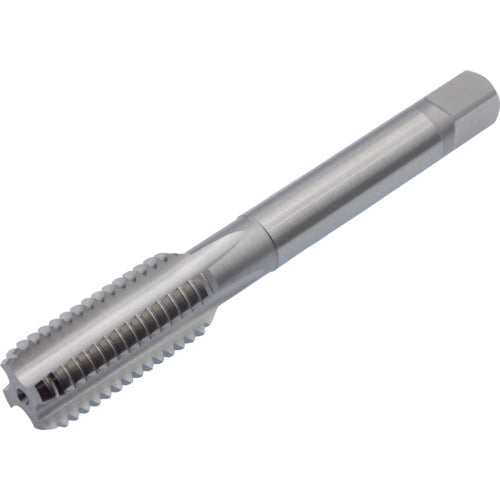

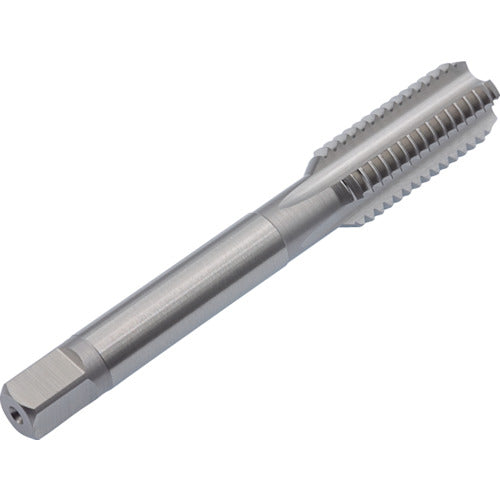

Yamawa Hand Tap HT P3 5/8-18UNF 1.5P HTP-UNF-5/8-3 1 piece

Catalog number: HTP-UNF-5/8-3 Features: ● Unified thread taps are used in a wide range of applications. Applications: ● Workpiece materials: carbon steel, tool steel, cast steel, cast iron, ductile iron, brass, aluminum alloy castings, zinc alloy castings, tempered steel, brass castings. Specifications: ● Tip: Top ● Precision: P3 ● Precision notation: P class ● Nominal dimensions: UNF5/8 ● Thread length (mm): 26 ● Total length (mm): 95 ● Shank diameter (mm): 12.5 ● Shank square section (mm): 10 ● Pilot hole diameter (mm): 14.60 ● Number of threads: 18 ● Machined thread: Unified thread ● Surface treatment: Non-coated ● Tap grade: P class Material/Finish: ● High-speed tool steel (HSS)
