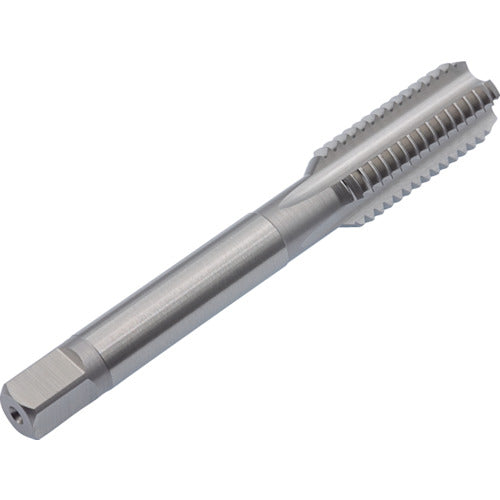

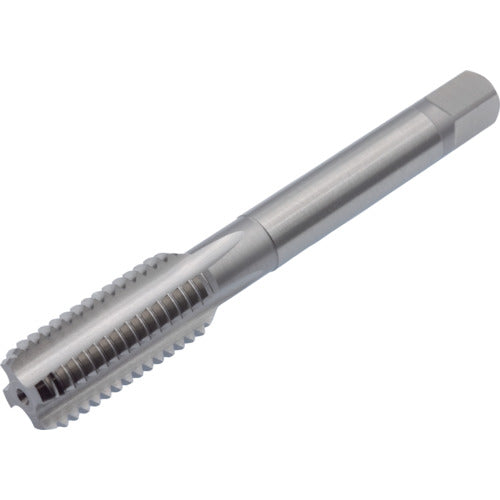

Yamawa Hand Tap HT P3 9/16-18UNF 1.5P HTP-UNF-9/16-3 1 piece

Catalog number: HTP-UNF-9/16-3 Features: ● Unified thread taps are used in a wide range of applications. Applications: ● Workpiece: carbon steel, tool steel, cast steel, cast iron, ductile cast iron, brass, aluminum alloy castings, zinc alloy castings, tempered steel, brass castings. Specifications: ● Tip: Top ● Precision: P3 ● Precision notation: P grade ● Nominal dimensions: UNF9/16 ● Thread length (mm): 26 ● Total length (mm): 95 ● Shank diameter (mm): 12.5 ● Shank square section (mm): 10 ● Pilot hole diameter (mm): 13.00 ● Number of threads: 18 ● Machined thread: Unified thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging threads: 1.5 threads ● Tap grade: P grade Material/Finish: ● High-speed tool steel (HSS)
