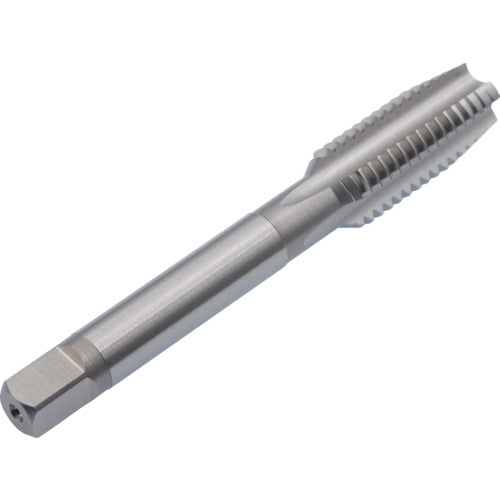

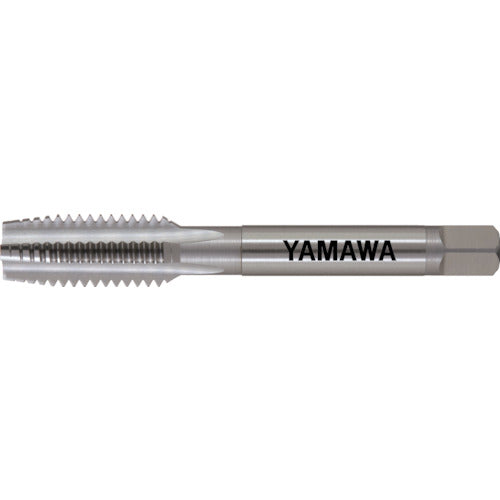

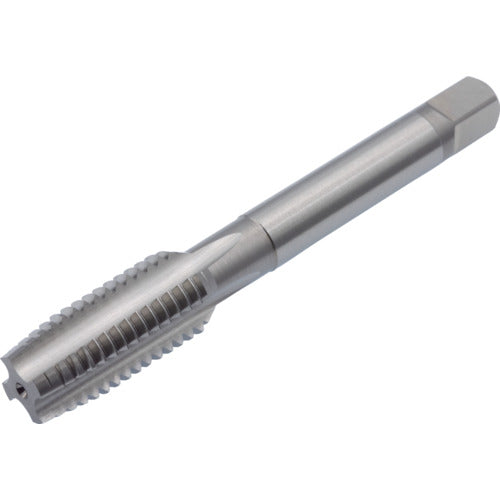

Yamawa Hand Tap HT P3 9/16-24UNEF 5P HT-P3-9/16-24UNEF-5P 1 piece

Catalog number: HT-P3-9/16-24UNEF-5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Medium ● Precision: P3 ● Precision notation: P grade ● Nominal dimensions: UNEF9/16 ● Thread length (mm): 26 ● Overall length (mm): 95 ● Shank diameter (mm): 12.5 ● Shank square section (mm): 10 ● Pilot hole diameter (mm): 13.32 ● Number of threads: 24 ● Machined thread: Unified thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging threads: 5P ● Number of engaging threads: 5 ● Shank length (mm): 48 ● Length of shank square section (mm): 13 Material/Finish: ● High-speed tool steel (HSS)
