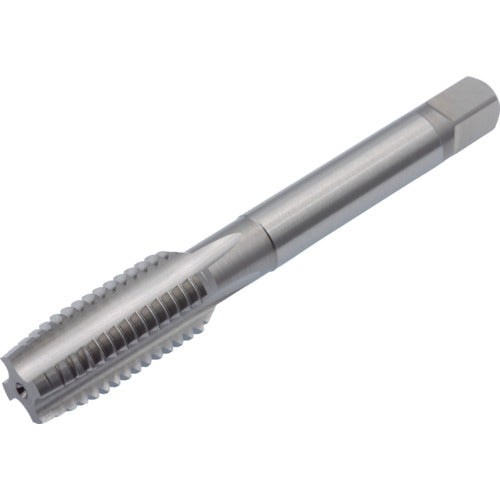

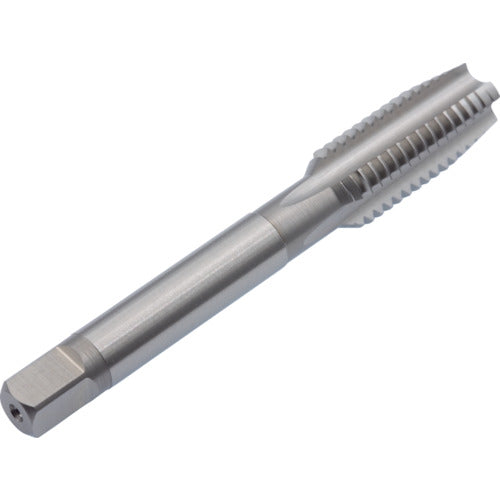

Yamawa Hand Tap HT P3 M13X1.5 5P HT-P3-M13X1.5-5P 1 piece

Catalog number: HT-P3-M13X1.5-5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Medium ● Precision: P3 ● Precision notation: P grade ● Nominal dimensions: M13 ● Pitch (mm): 1.5 ● Thread length (mm): 26 ● Total length (mm): 88 ● Shank diameter (mm): 10.5 ● Shank square section (mm): 8 ● Pilot hole diameter (mm): 11.60 ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging teeth: 5 teeth ● Shank length (mm): 45 ● Length of shank square section (mm): 11 Material/Finish: ● High-speed tool steel (HSS)
