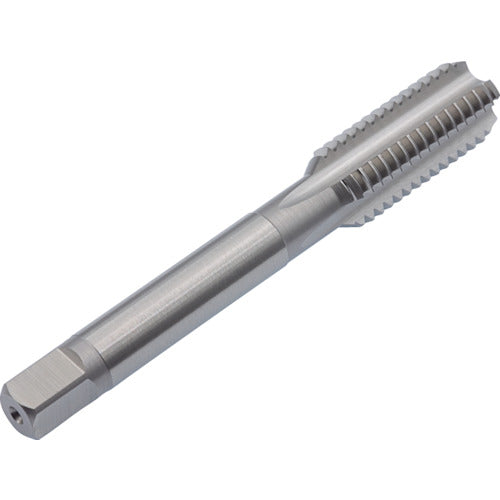

Yamawa Hand Tap HT P3 M15X2 1.5P HT-P3-M15X2-1.5P 1 piece

Catalog number: HT-P3-M15X2-1.5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Top ● Precision: P3 ● Precision notation: P grade ● Nominal dimensions: M15 ● Pitch (mm): 2 ● Thread length (mm): 26 ● Total length (mm): 95 ● Shank diameter (mm): 12.5 ● Shank square section (mm): 10 ● Pilot hole diameter (mm): 13.1 ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging teeth: 1.5 teeth ● Shank length (mm): 48 ● Length of shank square section (mm): 13 Material/Finish: ● High-speed tool steel (HSS)
