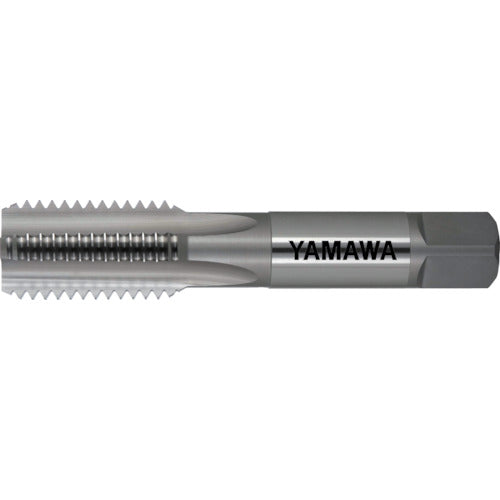

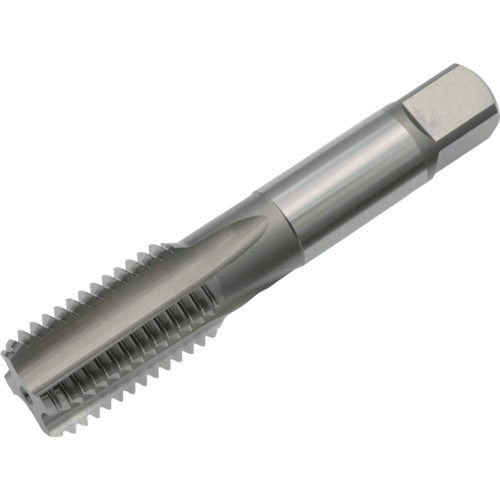

Yamawa Hand Tap HT P4 1-5/8-12UN 1.5P HT-P4-1-5/8-12UN-1.5P 1 piece

Catalog number: HT-P4-1-5/8-12UN-1.5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Top ● Precision: P4 ● Precision notation: P class ● Nominal dimensions: UN1 5/8 ● Thread length (mm): 59 ● Overall length (mm): 175 ● Shank diameter (mm): 32 ● Shank square section (mm): 26 ● Pilot hole diameter (mm): 39.3 ● Number of threads: 12 ● Machined thread: Unified thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging threads: 1.5P ● Number of engaging threads: 1.5 threads ● Shank length (mm): 81 ● Length of shank square section (mm): 30 Material/Finish: ● High-speed tool steel (HSS)
