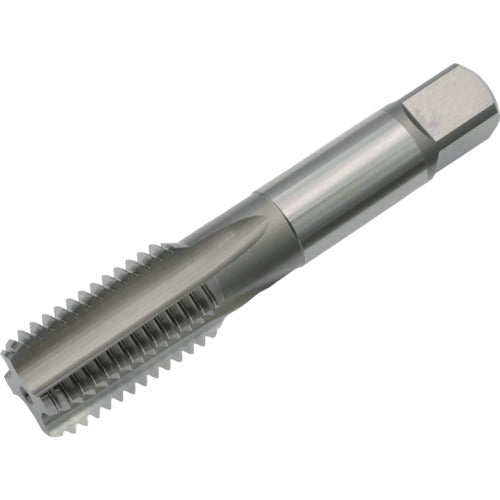

Yamawa Hand Tap HT P4 3/4W10 1.5P HT-P4-3/4W10-1.5P 1 piece

Catalog number: HT-P4-3/4W10-1.5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Top ● Precision: P4 ● Precision notation: P class ● Nominal dimensions: W3/4 ● Thread length (mm): 33 ● Overall length (mm): 105 ● Shank diameter (mm): 15 ● Shank square section (mm): 12 ● Pilot hole diameter (mm): 16.6 ● Number of threads: 10 ● Machined thread: Whitworth thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging threads: 1.5 ● Shank length (mm): 50 ● Length of shank square section (mm): 15 Material/Finish: ● High-speed tool steel (HSS)
