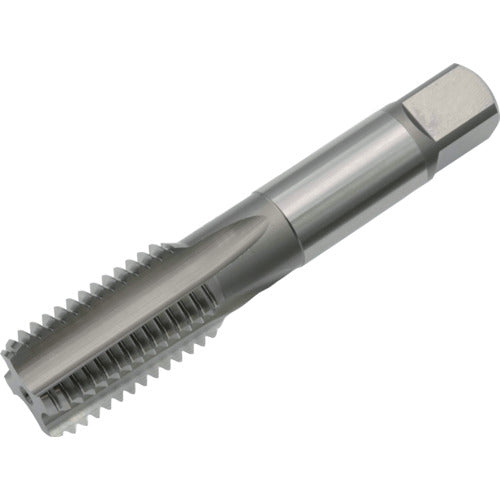

Yamawa Hand Tap HT P5 1-3/4-8UN 1.5P HT-P5-1-3/4-8UN-1.5P 1 piece

Catalog number: HT-P5-1-3/4-8UN-1.5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Top ● Precision: P5 ● Precision notation: P class ● Nominal dimensions: UN1 3/4 ● Thread length (mm): 59 ● Total length (mm): 180 ● Shank diameter (mm): 35 ● Shank square section (mm): 26 ● Pilot hole diameter (mm): 41.5 ● Number of threads: 8 ● Machined thread: Unified thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging threads: 1.5P ● Shank length (mm): 83 ● Length of shank square section (mm): 30 Material/Finish: ● High-speed tool steel (HSS)
