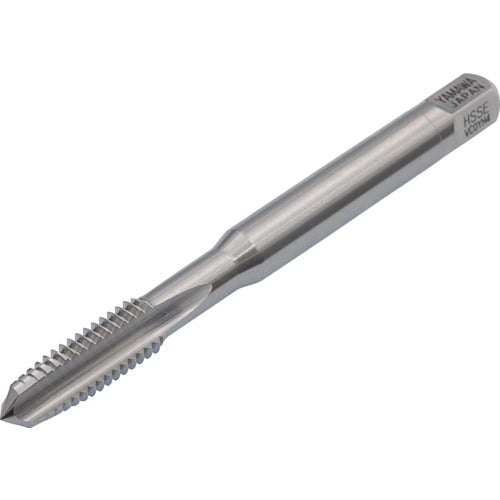

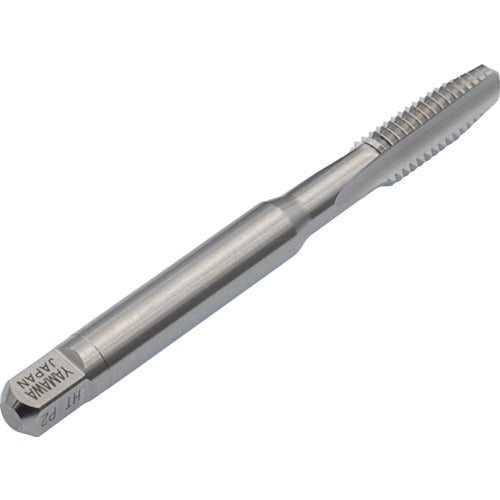

Yamawa Hand Tap HT P5 3F M5X0.8 5P HT-P5-3F-M5X0.8+40-5P 1 piece

Catalog number: HT-P5-3F-M5X0.8+40-5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting material: Medium carbon steel. Specifications: ● Tip: Medium ● Precision: P5 ● Precision notation: P grade ● Nominal dimensions: M5 ● Pitch (mm): 0.8 ● Thread length (mm): 13 ● Overall length (mm): 60 ● Shank diameter (mm): 5.5 ● Shank square section (mm): 4.5 ● Pilot hole diameter (mm): 4.28 ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Number of engaging teeth: 5 teeth ● Hand tap Material/Finish: ● High-speed tool steel (HSS)
