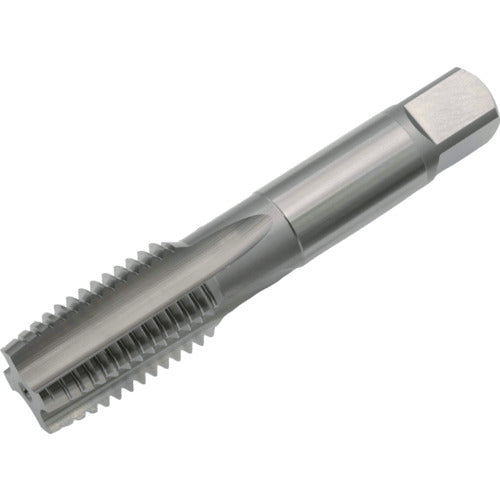

Yamawa Hand Tap HT P5 M45X3 5P HT-P5-M45X3-5P 1 piece

Catalog number: HT-P5-M45X3-5P Features: ● Suitable for cutting materials that produce powdery or similarly curled chips. ● Increased cutting edge strength. ● Easy to resharpen. Applications: ● Cutting materials: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ● Tip: Medium ● Precision: P5 ● Precision notation: P grade ● Nominal dimensions: M45 ● Pitch (mm): 3 ● Thread length (mm): 59 ● Overall length (mm): 180 ● Shank diameter (mm): 35 ● Shank square section (mm): 26 ● Pilot hole diameter (mm): 42.1 ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging teeth: 5 teeth ● Shank length (mm): 83 ● Length of shank square section (mm): 30 Material/Finish: ● High-speed tool steel (HSS)
