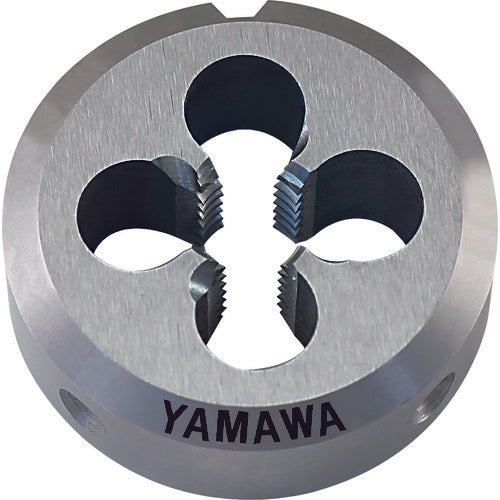

Yamawa Point Solid Die DPO S5 M11X1 38 Diameter DPO-S5-M11X1-38 1 pc

Catalog number: DPO-S5-M11X1-38 Features: ●The effect of the point grooves pushes the chips forward of the die, reducing problems caused by chips. Applications: ●For male thread machining. Specifications: ●Nominal size: M11 ●Pitch (mm): 1 ●Outer diameter (mm): 38 ●Thickness (mm): 13 ●Machined thread: Metric thread ●Precision: S5 ●Number of chip holes: 4 ●Number of engagement threads: 1.5 threads ●Surface treatment: Non-coated Material/Finish: ●High-speed tool steel (HSS)
