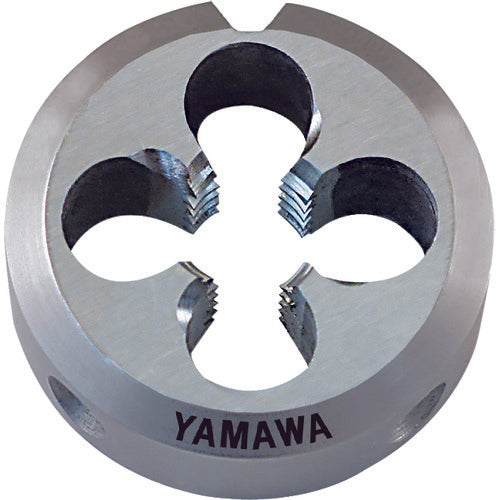

Yamawa Point Solid Die DPO S5 M9X1 25 Diameter DPO-S5-M9X1-25 1 pc

Catalog number: DPO-S5-M9X1-25 Features: ●The effect of the point grooves pushes the chips forward of the die, reducing problems caused by chips. Applications: ●For male thread machining. Specifications: ●Nominal size: M9 ●Pitch (mm): 1 ●Outer diameter (mm): 25 ●Thickness (mm): 9 ●Machined thread: Metric thread ●Accuracy: S5 ●Number of chip holes: 5 ●Number of engagement threads: 1.5 threads ●Surface treatment: Non-coated Material/Finish: ●High-speed tool steel (HSS)
