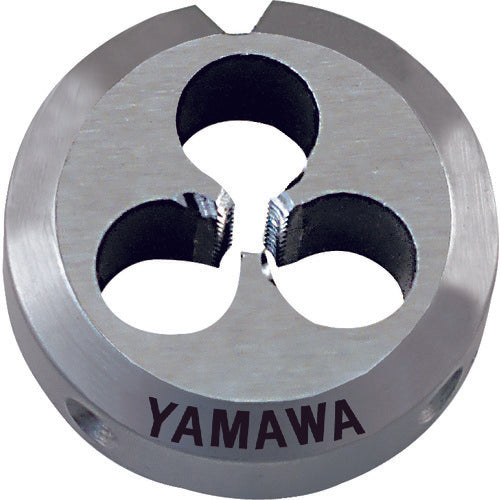

Yamawa Point Solid Die DPO S6 M2.5X0.45 25 Diameter DPO-S6-M2.5X0.45-25 1 pc

Catalog number: DPO-S6-M2.5X0.45-25 Features: ●The effect of the point grooves pushes the chips forward of the die, reducing problems caused by chips. Applications: ●For male thread machining. Specifications: ●Nominal size: M2.5 ●Pitch (mm): 0.45 ●Outer diameter (mm): 25 ●Thickness (mm): 9 ●Machined thread: Metric thread ●Accuracy: S6 ●Number of chip holes: 3 ●Number of engagement threads: 1.5 threads ●Surface treatment: Non-coated Material/Finish: ●High-speed tool steel (HSS)
