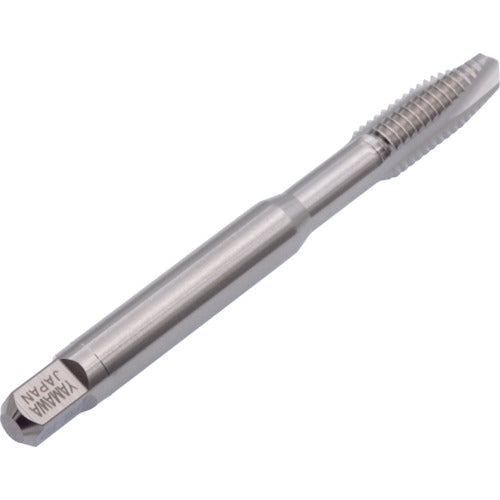

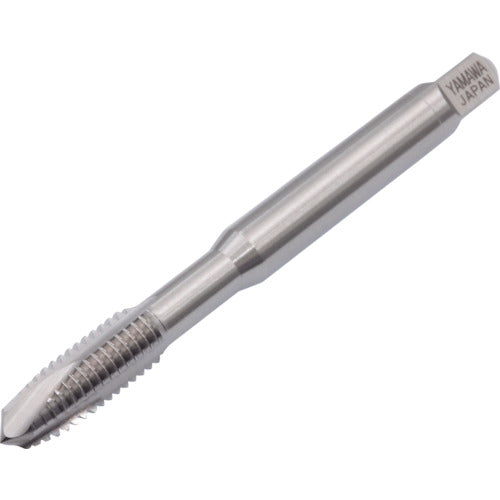

Yamawa Point Tap PO P1 2-56UNC PO-2-56 1 piece

Catalog number: PO-2-56 Features: ● Unified thread taps are used in a wide range of applications. Applications: ● For through hole machining. ● Work material: medium carbon steel, high carbon steel. Specifications: ● Precision: P1 ● Precision notation: P class ● Nominal dimensions: No.2 ● Thread length (mm): 8.1 ● Overall length (mm): 42 ● Shank diameter (mm): 3 ● Shank square section (mm): 2.5 ● Pilot hole diameter (mm): 1.83 ● Number of threads: 56 ● Number of engagement threads: 5 ● Thread machining: Unified thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Overall length (mm): 42 ● Shank diameter (mm): 3 ● Shank square section (mm): 5 ● Shank square section (mm): K2.5 ● Thread length (mm): 9.5 ● Precision: P1 ● Neck length (mm): 12 Material/Finish: ● High-speed tool steel (HSS)
