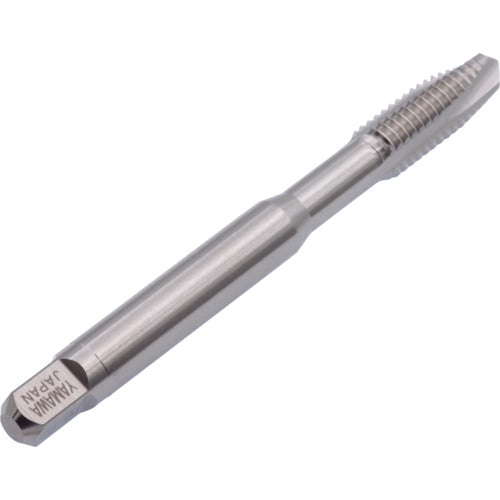

Catalog number: PO-8-32 Features: ●The groove on the cutting edge side of the chamfer is cut at an angle so that the chips are sent forward, making it ideal for through holes without any obstructions caused by chips. ●The straight groove is shallow, so it has high strength. Applications: ●For through hole processing. ●Work material: medium carbon steel, high carbon steel. Specifications: ●Accuracy: P2 ●Accuracy notation: P class ●Nominal size: No.8 ●Thread length (mm): 13 ●Total length (mm): 60 ●Shank diameter (mm): 5.5 ●Shank square section (mm): 4.5 ●Pilot hole diameter (mm): 3.47 ●Number of threads: 32 ●Number of chamfer threads: 5 ●Machining thread: Unified thread ●Surface treatment: Non-coated ●Number of grooves: 3 ●Neck length (mm): 22 Material/Finish: ●High-speed tool steel (HSS)
