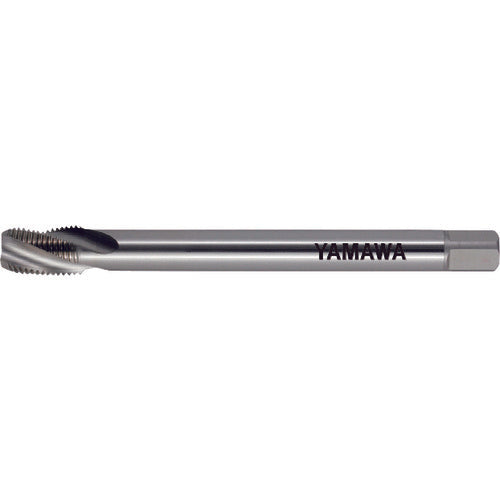

Yamawa Long Shank Pipe Taper Thread Short Thread Spiral Tap LS-SP-S-PT L120 3/8-19 LS-SP-S-PT-120-3/8-19 1 Piece

Catalog number: LS-SP-S-PT-120-3/8-19 Features: ●This product is primarily intended to improve the tightness of the threaded portion when connecting pipe parts, etc., and is a long shank spiral tap for pipe tapered threads used for threading when the fitting length needs to be shortened. Applications: ●For blind/through hole processing. ●Cutting material: Low carbon steel, medium carbon steel, high carbon steel. Specifications: ●Accuracy: JIS Class 2 ●Nominal size: 3/8 ●Number of threads: 19 ●Thread length (mm): 21 ●Total length (mm): 120 ●Shank diameter (mm): 14 ●Shank square section (mm): 11 ●Pilot hole diameter (mm): 14.2 ●Machined thread: Tapered thread ●Number of engaging threads: 2.5 ●Surface treatment: Non-coated ●Length to reference diameter (mm): 14 ●Number of grooves: 3 grooves ●Number of grooves: 3 ●Length of shank square section: 14mm Material/Finish: ●High speed tool steel (HSS)
