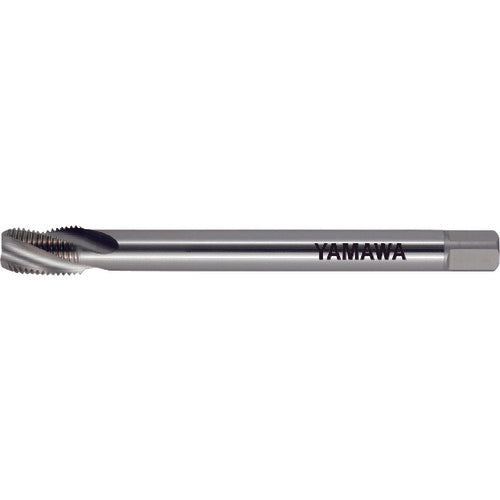

Yamawa Long Shank Pipe Taper Thread Short Thread Type LS-SP-S-PT L150 3/4-14 LS-SP-S-PT-150-3/4-14 1 Piece

Catalog number: LS-SP-S-PT-150-3/4-14 Features: ●This product is primarily intended to improve the tightness of the threaded portion when connecting pipe parts, etc., and is a long shank spiral tap for pipe tapered threads used for threading when the fitting length needs to be shortened. Applications: ●For blind/through hole processing. ●Workpiece material: Low carbon steel, medium carbon steel, and high carbon steel. Specifications: ●Precision: JIS Class 2 ●Nominal size: 3/4 ●Number of threads: 14 ●Thread length (mm): 29 ●Total length (mm): 150 ●Shank diameter (mm): 23 ●Shank square section (mm): 17 ●Pilot hole diameter (mm): 23.0 ●Machined thread: Tapered thread ●Number of engagement threads: 2.5 ●Surface treatment: Non-coated ●Length to reference diameter (mm): 19 ●Number of grooves: 4 grooves ●Number of grooves: 4 ●Length of shank square section: 20mm Material/Finish: ●High-speed tool steel (HSS)
