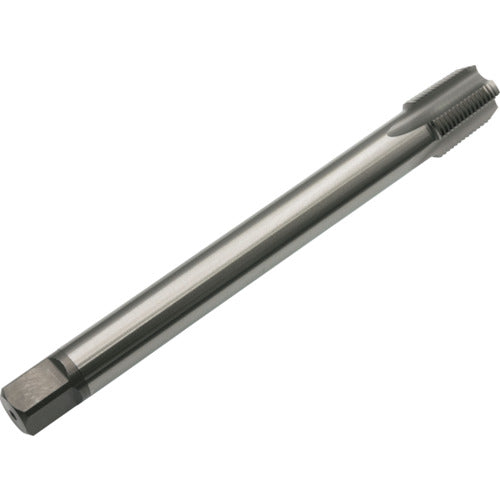

Yamawa Long Shank Pipe Taper Thread Short Thread Type LS-S-PT L100 1/4-19 LS-SPT-100-1/4 1 Piece

Catalog number: LS-SPT-100-1/4 Features: ●Standard pipe taps, used when the threaded portion does not have enough protruding length. Applications: ●Workpiece: Medium and high carbon steel, cast steel, cast iron, ductile cast iron, alloy steel. Specifications: ●Precision: JIS Class 2 ●Nominal size: 1/4 ●Number of threads: 19 ●Thread length (mm): 19.5 ●Total length (mm): 100 ●Shank diameter (mm): 11 ●Shank square section (mm): 9 ●Pilot hole diameter (mm): 10.9 ●Machined thread: Tapered thread ●Number of engaging threads: 2.5 ●Surface treatment: Non-coated ●Length to reference diameter (mm): 12.5 ●Tap grade: JIS grade Material/Finish: ●High-speed tool steel (HSS)
