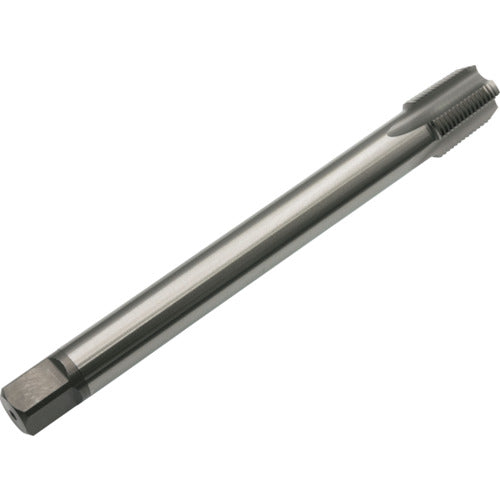

Yamawa Long Shank Pipe Taper Thread Short Thread Type LS-S-PT L200 1/2-14 LS-S-PT-200-1/2-14 1 Piece

Catalog number: LS-S-PT-200-1/2-14 Features: ●This product is primarily intended for the sealing of threaded parts when connecting pipe parts, etc., and is a long shank tap used for threading when the fitting length needs to be shortened. Applications: ●Workpiece material: Medium carbon steel, high carbon steel, alloy steel. Specifications: ●Precision: JIS Class 2 ●Nominal size: 1/2 ●Number of threads: 14 ●Thread length (mm): 27 ●Total length (mm): 200 ●Shank diameter (mm): 18 ●Shank square section (mm): 14 ●Pilot hole diameter (mm): 17.6 ●Machined thread: Tapered thread ●Number of engagement threads: 2.5 threads ●Surface treatment: Non-coated ●Length to reference diameter (mm): 17 ●Number of grooves: 4 grooves ●Number of grooves: 4 ●Length of shank square section: 17mm Material/Finish: ●High-speed tool steel (HSS)
