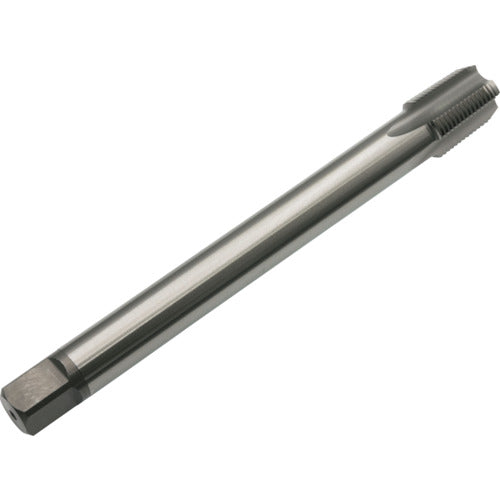

Yamawa Long Shank Pipe Taper Thread Short Thread Type LS-S-PT L200 1/4-19 LS-S-PT-200-1/4-19 1 Piece

Catalog number: LS-S-PT-200-1/4-19 Features: ●This is a long shank tap used for threading when the fitting length needs to be shortened, and the main purpose of the product is to improve the sealing of the threaded part when connecting pipe parts, etc. Applications: ●Workpiece material: Medium carbon steel, high carbon steel, alloy steel. Specifications: ●Accuracy: JIS Class 2 ●Nominal size: 1/4 ●Number of threads: 19 ●Thread length (mm): 19.5 ●Total length (mm): 200 ●Shank diameter (mm): 11 ●Shank square section (mm): 9 ●Pilot hole diameter (mm): 10.7 ●Machined thread: Tapered thread ●Number of engagement threads: 2.5 ●Surface treatment: Non-coated ●Length to reference diameter (mm): 12.5 ●Number of grooves: 4 grooves ●Number of grooves: 4 ●Length of shank square section: 12mm Material/Finish: ●High speed tool steel (HSS)
