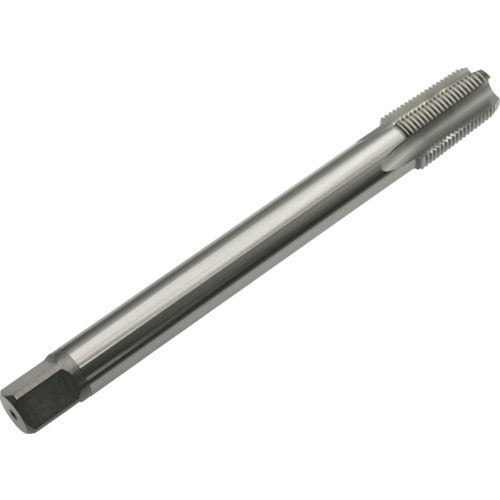

Yamawa Long Shank Pipe Taper Thread Hand Tap Long Thread Type LS-PT L100 1/16-28 LS-PT-100-1/16-28 1 Piece

Catalog number: LS-PT-100-1/16-28 Features: ●This is a long shank tap for pipe tapered threads used for threading products where the main purpose is to make the threaded part tight when connecting pipe parts, etc. Applications: ●Workpiece material: Medium carbon steel, high carbon steel, alloy steel. Specifications: ●Accuracy: JIS Class 2 ●Nominal size: 1/16 ●Number of threads: 28 ●Thread length (mm): 19 ●Total length (mm): 100 ●Shank diameter (mm): 8 ●Shank square section (mm): 6 ●Pilot hole diameter (mm): 6.1 ●Machined thread: Tapered thread ●Number of engagement threads: 2.5 ●Surface treatment: Non-coated ●Length to reference diameter (mm): 13 ●Number of grooves: 4 grooves ●Number of grooves: 4 ●Length of shank square section: 9mm Material/Finish: ●High speed tool steel (HSS)
