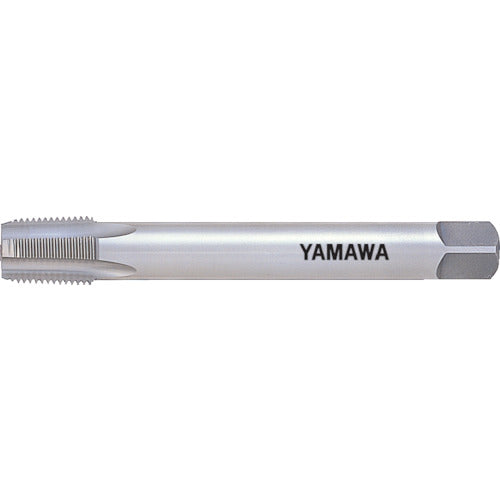

Yamawa Long Shank Pipe Parallel Thread Hand Tap LS-PS L100 1/4-19 LS-PS-100-1/4 1 Piece

Catalog number: LS-PS-100-1/4 Features: ●Standard pipe taps, used when the threaded portion does not have enough protruding length. Applications: ●Workpiece: low, medium, and high carbon steel. Specifications: ●Precision: JIS Class 2 ●Nominal size: 1/4 ●Number of threads: 19 ●Thread length (mm): 28 ●Total length (mm): 100 ●Shank diameter (mm): 11 ●Shank square section (mm): 9 ●Pilot hole diameter (mm): 11.3 ●Machined thread: Parallel thread ●Number of engagement threads: 3.5 ●Surface treatment: Non-coated ●Tap grade: JIS grade Material/Finish: ●High-speed tool steel (HSS)
