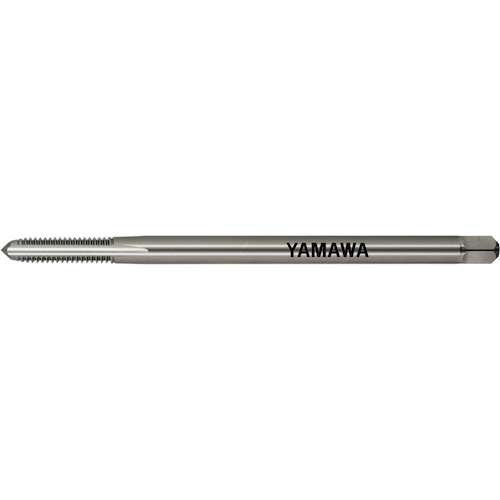

Yamawa Long Shank Carbide Hand Tap LS-N-CT L100 P3 M6X1 3P LS-N-CT-P3-100-M6X1-3P 1 piece

Catalog number: LS-N-CT-P3-100-M6X1-3P Features: ● A carbide long shank tap suitable for mass-produced thread machining of hard and brittle materials such as castings. Applications: ● Workpiece: Cast iron, tough cast iron, brass castings. Specifications: ● Precision: P3 ● Precision notation: P class ● Nominal dimensions: M6 ● Pitch (mm): 1 ● Thread length (mm): 19 ● Total length (mm): 100 ● Shank diameter (mm): 6 ● Shank square section (mm): 4.5 ● Pilot hole diameter (mm): 5.09 ● Machining thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging teeth: 3 teeth Material/Finish: ● Ultra-fine grain carbide alloy (HF)
