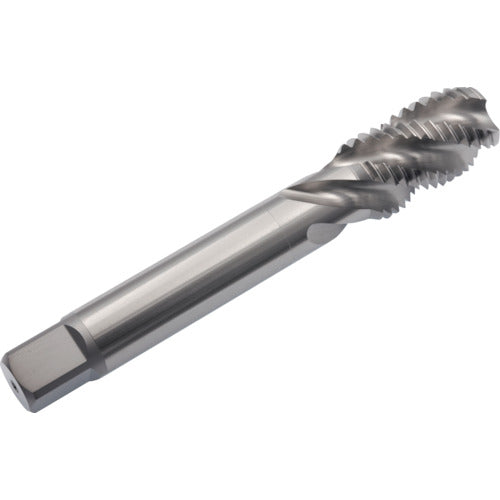

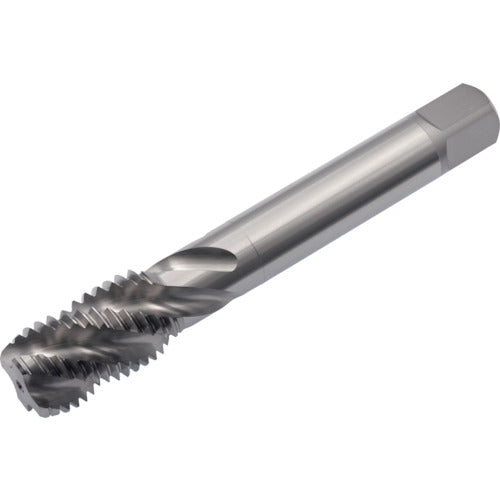

Yamawa Long Spiral Tap LS-SP L200 P3 1-8UNC LS-SP-P3-200-1-8UNC 1 piece

Catalog number: LS-SP-P3-200-1-8UNC Application: ●For blind hole machining. ●Workpiece material: Medium carbon steel. Specifications: ●Accuracy: P3 ●Accuracy notation: P grade ●Nominal dimensions: UNC1 ●Pitch (mm): 3.175 ●Thread length (mm): 39 ●Total length (mm): 200 ●Shank diameter (mm): 19 ●Shank square section (mm): 15 ●Pilot hole diameter (mm): 22.5 ●Number of threads: 8 ●Number of engaging threads: 2.5 threads ●Machined thread: Unified thread ●Surface treatment: Non-coated ●Number of grooves: 4 Material/Finish: ●High-speed tool steel (HSS)
