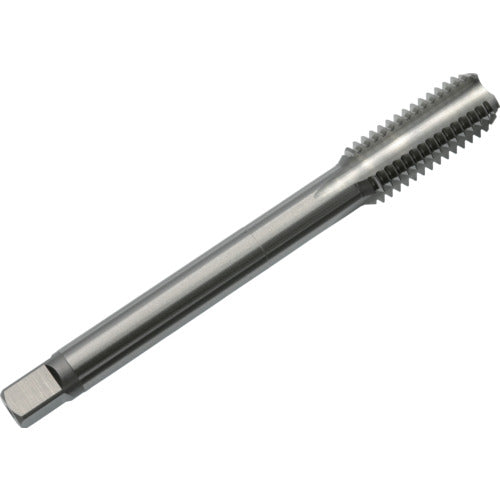

Yamawa Long Hand Tap LS-HT L120 P2 M10X1.5 1.5P LS-HT-P2-120-M10X1.5-1.5P 1 piece

Catalog number: LS-HT-P2-120-M10X1.5-1.5P Features: ● Long shank hand tap suitable for deep hole threading. Applications: ● Workpiece: Low carbon steel, medium carbon steel, high carbon steel. Specifications: ● Tip: Top ● Precision: P2 ● Precision notation: P class ● Nominal dimensions: M10 ● Pitch (mm): 1.5 ● Thread length (mm): 23 ● Total length (mm): 120 ● Shank diameter (mm): 7 ● Shank square section (mm): 5.5 ● Pilot hole diameter (mm): 8.6 ● Machining thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 4 grooves ● Number of engagement teeth: 1.5 teeth Material/Finish: ● High speed tool steel (HSS)
