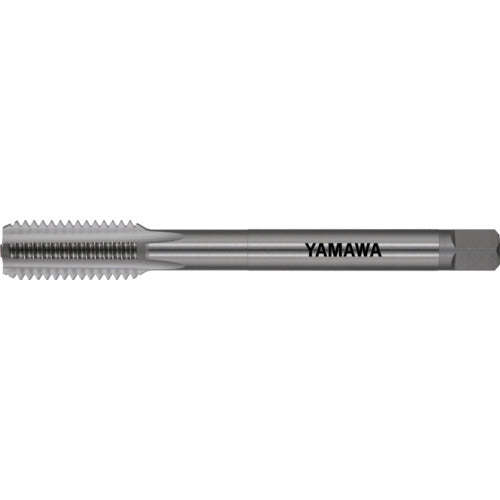

Yamawa Long Hand Tap LS-HT L150 P1 M3X0.5 1.5P LS-HT-F-P1-150-M3X0.5-1.5P 1 piece

Catalog number: LS-HT-F-P1-150-M3X0.5-1.5P Features: ● Long shank hand tap suitable for deep hole threading. Applications: ● Workpiece: Low carbon steel, medium carbon steel, high carbon steel. Specifications: ● Tip: Top ● Precision: P1 ● Precision notation: P class ● Nominal dimensions: M3 ● Pitch (mm): 0.5 ● Thread length (mm): 9 ● Total length (mm): 150 ● Shank diameter (mm): 4 ● Shank square section (mm): 3.2 ● Pilot hole diameter (mm): 2.56 ● Machining thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Chamfer: 1.5 teeth ● Neck length: 18 ● Shank length: 40 ● Shank square section width: 3.2 ● Shank square section length: 6 Material/Finish: ● High speed tool steel (HSS)
