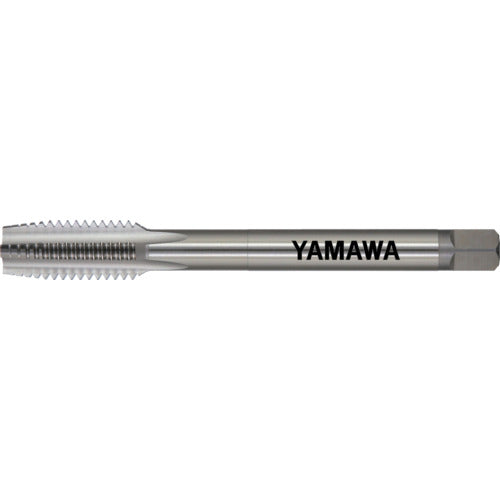

Yamawa Long Hand Tap LS-HT L70 P1 M2X0.4 5P LS-HT-F-P1-70-M2X0.4-5P 1 piece

Catalog number: LS-HT-F-P1-70-M2X0.4-5P Features: ● Long shank hand tap suitable for deep hole threading. Applications: ● Workpiece: Low carbon steel, medium carbon steel, high carbon steel. Specifications: ● Tip: Medium ● Precision: P1 ● Precision notation: P class ● Nominal dimensions: M2 ● Pitch (mm): 0.4 ● Thread length (mm): 7.2 ● Total length (mm): 70 ● Shank diameter (mm): 3 ● Shank square section (mm): 2.5 ● Pilot hole diameter (mm): 1.65 ● Machining thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Chamfer: 5 teeth ● Neck length: 15 ● Shank length: 52 ● Shank square section width: 2.5 ● Shank square section length: 5 Material/Finish: ● High speed tool steel (HSS)
