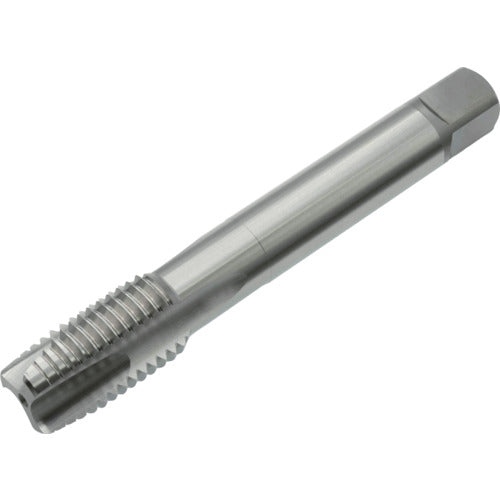

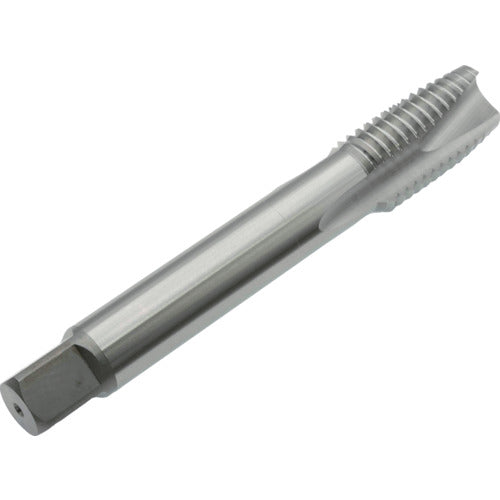

Yamawa Long Point Tap LS-PO L200 P4 M24X1.5 LS-PO-P4-200-M24X1.5 1 piece

Catalog number: LS-PO-P4-200-M24X1.5 Features: ●Long point tap for through holes suitable for threading deep holes. Applications: ●For through hole machining. ●Workpiece material: Medium carbon steel. Specifications: ●Accuracy: P4 ●Accuracy notation: P class ●Nominal dimensions: M24 ●Pitch (mm): 1.5 ●Thread length (mm): 39 ●Total length (mm): 200 ●Shank diameter (mm): 19 ●Shank square section (mm): 15 ●Pilot hole diameter (mm): 22.60 ●Number of engagement threads: 5 threads ●Machined thread: Metric thread ●Surface treatment: Non-coated ●Number of grooves: 3 Material/Finish: ●High speed tool steel (HSS)
