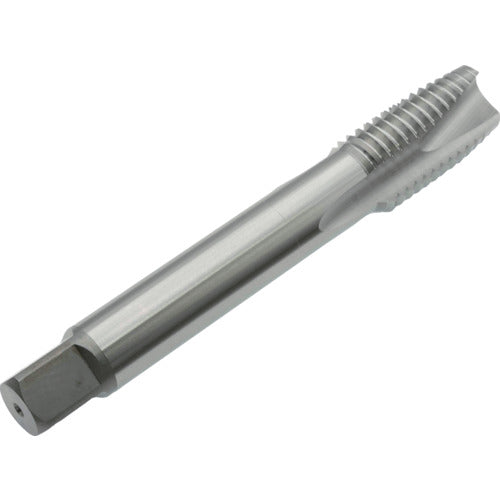

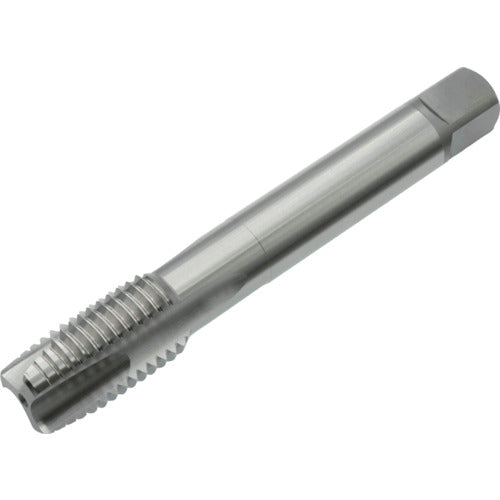

Yamawa Long Point Tap LS-PO L200 P5 M30X3.5 LS-PO-P5-200-M30X3.5 1 piece

Catalog number: LS-PO-P5-200-M30X3.5 Features: ●Long point tap for through holes suitable for threading deep holes. Applications: ●For through hole machining. ●Work material: Medium carbon steel. Specifications: ●Accuracy: P5 ●Accuracy notation: P class ●Nominal size: M30 ●Pitch (mm): 3.5 ●Thread length (mm): 46 ●Total length (mm): 200 ●Shank diameter (mm): 23 ●Shank square section (mm): 17 ●Pilot hole diameter (mm): 26.6 ●Number of engagement threads: 5 ●Thread machining: Metric thread ●Surface treatment: Non-coated ●Number of grooves: 4 ●Long point tap Material/Finish: ●High speed tool steel (HSS)
