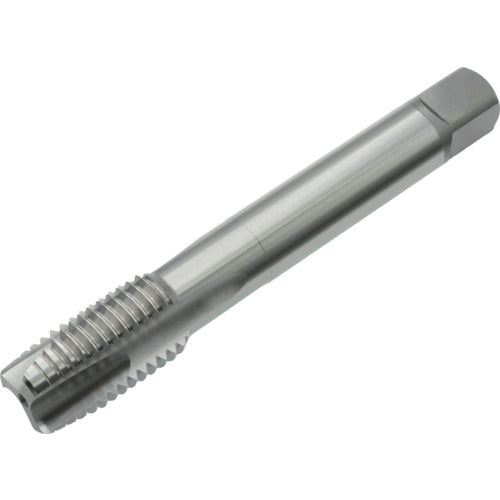

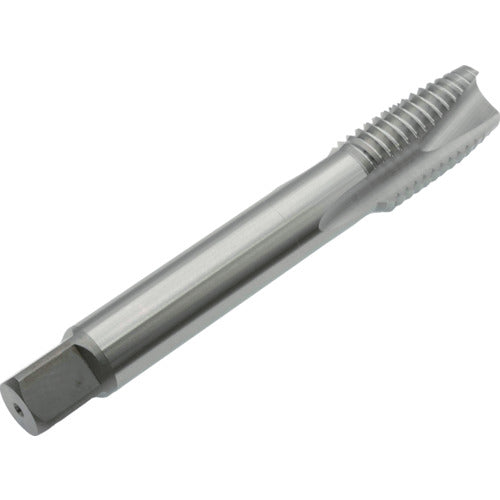

Yamawa Long Point Tap LS-PO L250 P4 M20X2.5 LS-PO-P4-250-M20X2.5 1 piece

Catalog number: LS-PO-P4-250-M20X2.5 Features: ●Long point tap for through holes suitable for threading deep holes. Applications: ●For through hole machining. ●Workpiece material: Medium carbon steel. Specifications: ●Accuracy: P4 ●Accuracy notation: P class ●Nominal size: M20 ●Pitch (mm): 2.5 ●Thread length (mm): 33 ●Total length (mm): 250 ●Shank diameter (mm): 15 ●Shank square section (mm): 12 ●Pilot hole diameter (mm): 17.6 ●Number of engagement threads: 5 threads ●Machined thread: Metric thread ●Surface treatment: Non-coated ●Number of grooves: 3 Material/Finish: ●High speed tool steel (HSS)
