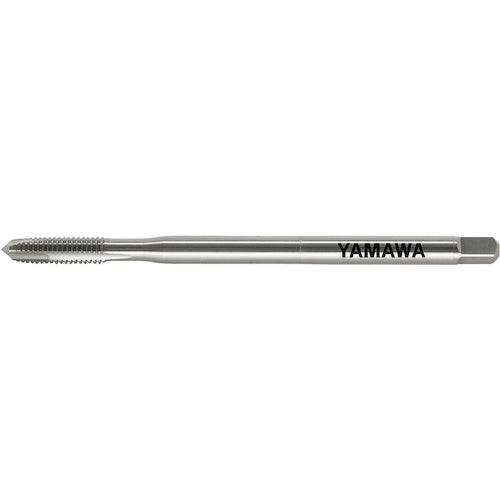

Yamawa Long Point Tap LS-PO L70 P2 M2.5X0.45 LS-PO-F-P2-70-M2.5X0.45 1 piece

Catalog number: LS-PO-F-P2-70-M2.5X0.45 Features: ●Long point tap for through holes suitable for threading deep holes. Applications: ●For through hole processing. ●Workpiece: Medium carbon steel, high carbon steel. Specifications: ●Accuracy: P2 ●Accuracy notation: P class ●Nominal size: M2.5 ●Pitch (mm): 0.45 ●Thread length (mm): 8.1 ●Total length (mm): 70 ●Shank diameter (mm): 3 ●Shank square section (mm): 2.5 ●Pilot hole diameter (mm): 2.11 ●Number of engagement threads: 5 threads ●Machined thread: Metric thread ●Surface treatment: Non-coated ●Number of grooves: 3 ●Neck length (mm): 15 ●Shank length (mm): 52 ●Shank square section length (mm): 5 Material/Finish: ●High speed tool steel (HSS)
