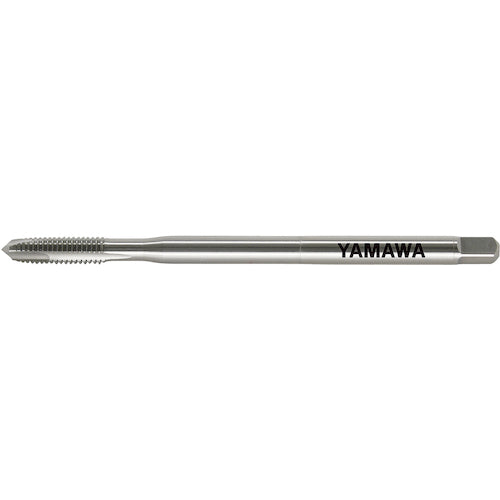

Yamawa Long Point Tap LS-PO L70 P2 M3X0.5 LS-PO-F-P2-70-M3X0.5 1 piece

Catalog number: LS-PO-F-P2-70-M3X0.5 Features: ●Long point tap for through holes suitable for threading deep holes. Applications: ●For through hole machining. ●Workpiece: Medium carbon steel, high carbon steel. Specifications: ●Accuracy: P2 ●Accuracy notation: P class ●Nominal size: M3 ●Pitch (mm): 0.5 ●Thread length (mm): 9 ●Total length (mm): 70 ●Shank diameter (mm): 4 ●Shank square section (mm): 3.2 ●Pilot hole diameter (mm): 2.56 ●Number of engagement threads: 5 threads ●Machined thread: Metric thread ●Surface treatment: Non-coated ●Number of grooves: 3 ●Neck length (mm): 18 ●Shank length (mm): 46 ●Shank square section length (mm): 6 Material/Finish: ●High speed tool steel (HSS)
