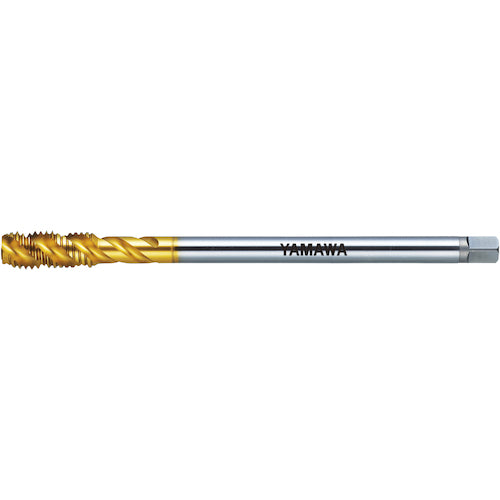

Yamawa Long High Speed ​​Spiral Tap LS-F-SP L100 P2 M5X0.8 LS-F-SP-F-P2-100-M5X0.8 1 piece

Catalog number: LS-F-SP-F-P2-100-M5X0.8 Features: ●Long spiral tap for blind holes capable of high-speed machining at 15m/min to 25m/min. ●Using at low speeds can cause problems due to poor chip shape and poor discharge. Applications: ●For blind hole machining. ●Work material: Low carbon steel, medium carbon steel. Specifications: ● Precision: P2 ● Precision notation: P grade ● Nominal size: M5 ● Pitch (mm): 0.8 ● Thread length (mm): 9 ● Total length (mm): 100 ● Shank diameter (mm): 5.5 ● Square shank section (mm): 4.5 ● Counterbore diameter (mm): 4.28 ● Number of engagement threads: 2.5 threads ● Machined thread: Metric thread ● Surface treatment: TiN coating ● For fully synchronous feed only ● Number of grooves: 3 ● Neck length (mm): 25 ● Shank length (mm): 40 ● Length of square shank section (mm): 7 Material/Finish: ● High-speed tool steel (HSS)
