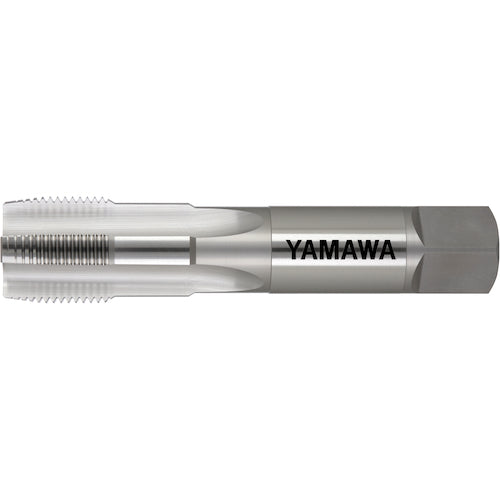

Yamawa Thick Steel Conduit Thread Hand Tap HT CTG 16-14 5P HT-CTG-16-14-5P 1 Piece

Catalog number: HT-CTG-16-14-5P Features: ●Tap for thick steel conduit threads. ●Thread angle is 55°, and the thread symbol is CTG. Specifications: ●Tip: Medium ●Nominal size: CTG16 ●Thread length (mm): 25 ●Total length (mm): 115 ●Shank diameter (mm): 17 ●Shank square section (mm): 13 ●Pilot hole diameter (mm): 19.40 ●Number of threads: 14 ●Machined thread: Thick steel conduit thread ●Surface treatment: Non-coated ●Number of grooves: 4 ●Number of engaging threads: 5 ●Hand tap for thick steel conduit threads Material/Finish: ●High-speed tool steel (HSS)
