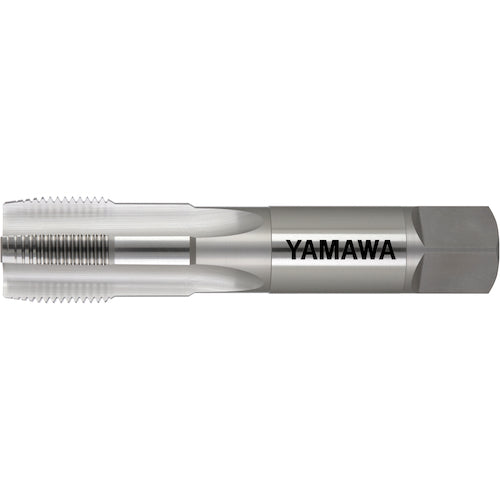

Yamawa Hand Tap for Thick Steel Conduit Threads HT CTG 36-11 5P HT-CTG-36-11-5P 1 Piece

Catalog number: HT-CTG-36-11-5P Features: ●Tap for thick steel conduit threads. ●Thread angle is 55°, and the thread symbol is CTG. Specifications: ●Tip: Medium ●Nominal size: CTG36 ●Thread length (mm): 33 ●Total length (mm): 180 ●Shank diameter (mm): 35 ●Shank square section (mm): 26 ●Pilot hole diameter (mm): 39.87 ●Number of threads: 11 ●Machined thread: Thick steel conduit thread ●Surface treatment: Non-coated ●Number of grooves: 4 ●Number of engaging threads: 5 threads ●Hand tap for thick steel conduit threads Material/Finish: ●High-speed tool steel (HSS)
