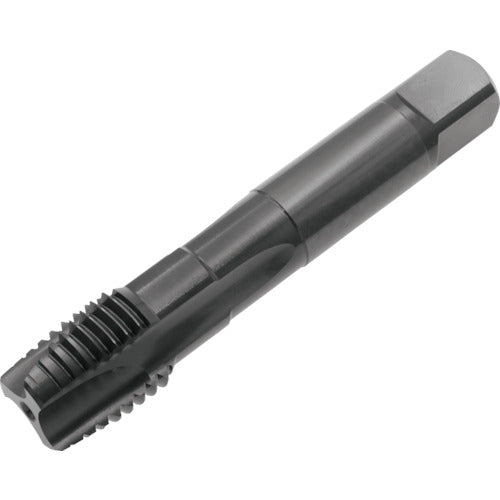

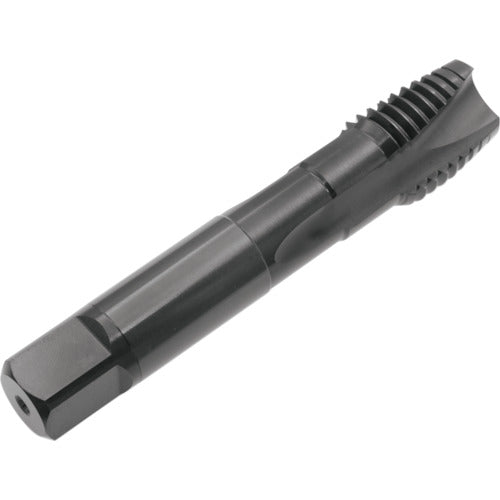

Yamawa Deep Hole Short Point Tap S-PO P5 M20X2.5 S-PO-P5-M20X2.5+20 1 piece

Catalog number: S-PO-P5-M20X2.5+20 Features: ●The short length of the threaded portion reduces frictional resistance and improves the supply of cutting oil, making this a point tap that is effective for deep threading of more than 2.5 times the nominal diameter. Applications: ●For through hole machining. ●Workpiece material: Low carbon steel, medium carbon steel, high carbon steel, alloy steel. Specifications: ●Accuracy: P5 ●Accuracy notation: P class ●Nominal size: M20 ●Pitch (mm): 2.5 ●Thread length (mm): 20 ●Total length (mm): 105 ●Shank diameter (mm): 15 ●Shank square section (mm): 12 ●Pilot hole diameter (mm): 17.6 ●Number of engagement threads: 5 ●Machining thread: Metric thread ●Surface treatment: Oxidation treatment ●Number of grooves: 3 ●Shank length: 50mm ●Shank square section length: 15mm Material/Finish: ●High speed tool steel (HSS)
