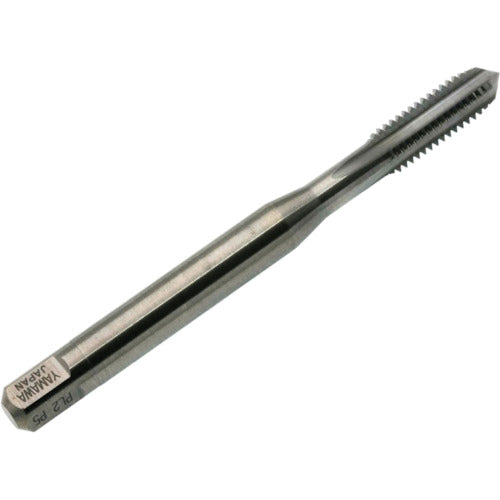

Yamawa Hand Tap for Thermoplastic Resin PL2 P4 M2.3X0.4 3P PL2-P4-M2.3X0.4-3P 1 Piece

Catalog number: PL2-P4-M2.3X0.4-3P Features: ●Tap for thermoplastic resin, which is particularly difficult to thread among synthetic resins. ●Synthetic resin has low thermal conductivity and heat concentrates on the cutting edge, which causes severe tool wear and shrinks the female thread, so the tap is designed to be oversized and nitrided. ●The cutting edge is designed to be optimally shaped to prevent chips from remaining. Applications: ●For thermosetting plastics and thermoplastic plastics. Specifications: ● Precision: P4 ● Precision notation: P grade ● Nominal size: M2.3 ● Pitch (mm): 0.4 ● Thread length (mm): 7.2 ● Total length (mm): 42 ● Shank diameter (mm): 3 ● Square shank section (mm): 2.5 ● Counterbore diameter (mm): 1.95 ● Machined thread: Metric thread ● Surface treatment: Nitriding ● Number of grooves: 3 ● Neck length (mm): 12 ● Shank length (mm): 27 ● Square shank section length (mm): 5 ● Number of engagement teeth: 3 teeth Material/Finish: ● High-speed tool steel (HSS)
