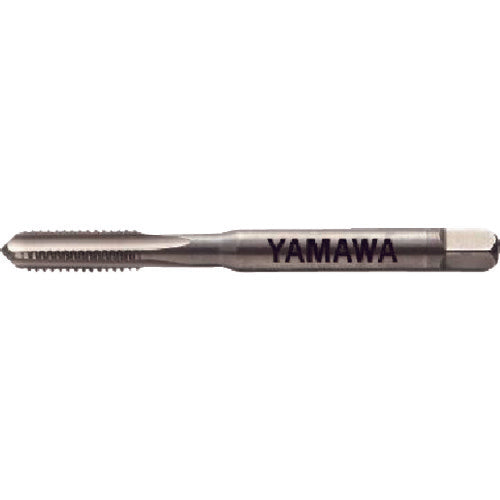

Yamawa Hand Tap for Thermosetting Resin PL1 M2.3X0.4 3P PL1-M2.3X0.4-3P 1 Piece

Catalog number: PL1-M2.3X0.4-3P Features: ●Tap for thermosetting resin, which is particularly difficult to thread among synthetic resins. Applications: ●Workpiece: For thermosetting plastics. Specifications: ●Accuracy: P4 ●Accuracy notation: P class ●Nominal size: M2.3 ●Pitch (mm): 0.4 ●Thread length (mm): 7.2 ●Total length (mm): 42 ●Shank diameter (mm): 3 ●Shank square section (mm): 2.5 ●Pilot hole diameter (mm): 1.95 ●Machined thread: Metric thread ●Surface treatment: Nitriding ●Number of grooves: 3 ●Number of engaging threads: 3 ●Number of engaging threads: 3 ●Neck length (mm): 12 ●Shank length (mm): 27 ●Shank square section length (mm): 5 Material/Finish: ●High-speed tool steel (HSS)
