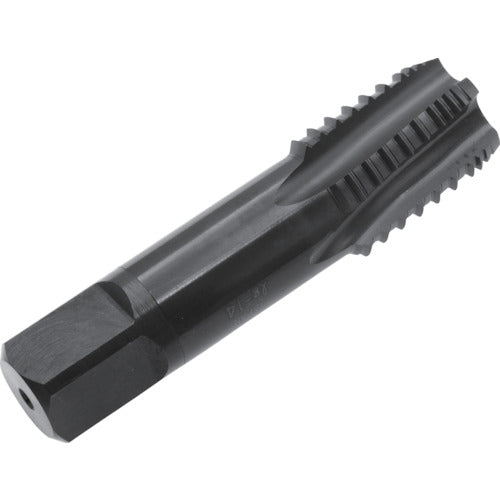

Yamawa Interrupt Tap for Pipe Taper Threads, Short Thread Type, INT-S-PT 1-11 INT-S-PT-1 1 Piece

Catalog number: INT-S-PT-1 Features: ●Gas tap for sticky materials. ●Left spiral groove angle is 8°. Applications: ●Workpiece: Medium and high carbon steel, stainless steel, cast steel. Specifications: ●Precision: JIS Class 2 ●Nominal size: 1 ●Number of threads: 11 ●Thread length (mm): 35 ●Total length (mm): 95 ●Shank diameter (mm): 26 ●Shank square section (mm): 21 ●Pilot hole diameter (mm): 29.3 ●Machined thread: Tapered thread ●Number of engaging threads: 3 ●Surface treatment: Oxidation treatment ●Length to reference diameter (mm): 22 ●Tap grade: JIS grade Material/Finish: ●High-speed tool steel (HSS)
