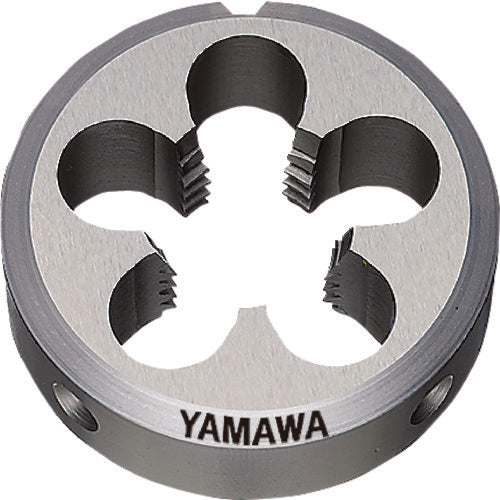

Yamawa Solid Dies for Taper Pipe Threads, Left-Hand Threads, D LH PT 1/8-28, 38 Diameter, D-LH-PT-1/8-28-38, 1 Piece

Catalog number: D-LH-PT-1/8-28-38 Features: ●Solid die for machining left-handed PT male threads with improved die runout accuracy. Applications: ●For machining male threads. Specifications: ●Nominal size: 1/8 ●Number of threads: 28 ●Outer diameter (mm): 38 ●Thickness (mm): 13 ●Machined thread: Pipe taper thread ●Length to reference diameter (mm): 6 ●Accuracy: Class 2 ●Number of chip holes: 4 ●Number of engagement threads: 2.5 threads ●Surface treatment: Non-coated Material/Finish: ●High-speed tool steel (HSS)
