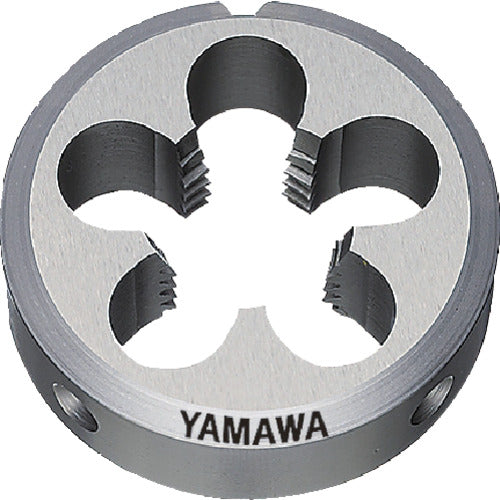

Yamawa Solid Dies for Taper Pipe Threads, Left-Hand Threads, D LH PT 3/4-14, 63 Diameter, D-LH-PT-3/4-14-63, 1 Piece

Catalog number: D-LH-PT-3/4-14-63 Features: ●Solid die for machining left-handed PT male threads with improved die runout accuracy. Applications: ●For machining male threads. Specifications: ●Nominal size: 3/4 ●Number of threads: 14 ●Outer diameter (mm): 63 ●Thickness (mm): 24 ●Machined thread: Pipe taper thread ●Length to reference diameter (mm): 12.5 Material/Finish: ●High-speed tool steel (HSS)
