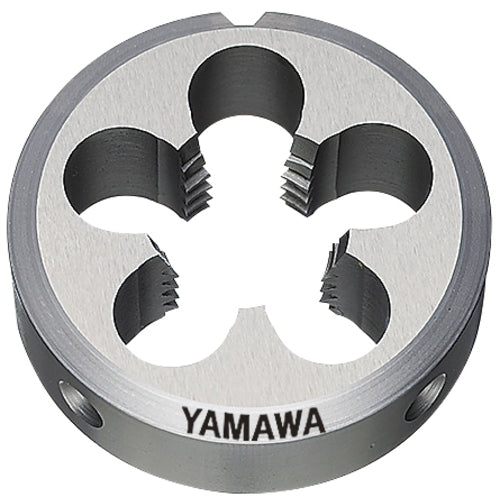

Yamawa Solid Die for Pipe Taper Threads D PT 1/16-28 38 Diameter D-PT-1/16-28-38 1 pc

Catalog number: D-PT-1/16-28-38 Features: ●Solid die for PT male thread machining with improved die runout accuracy. Applications: ●For male thread machining. Specifications: ●Nominal size: 1/16 ●Number of threads: 28 ●Outer diameter (mm): 38 ●Thickness (mm): 13 ●Machined thread: Pipe taper thread ●Length to reference diameter (mm): 6 ●Number of chip holes: 4 ●Number of engagement threads: 2.5 threads ●Surface treatment: Non-coated Material/Finish: ●High-speed tool steel (HSS)
