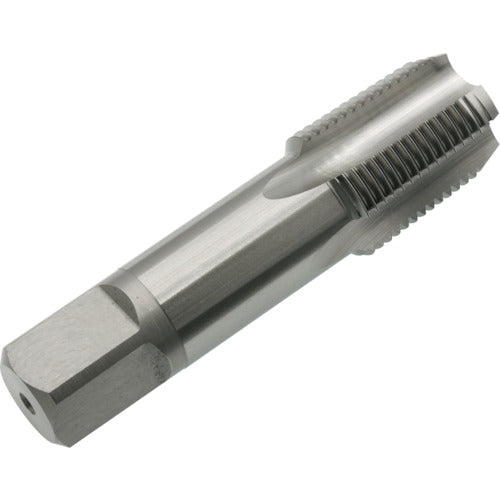

Yamawa Hand Tap for Pipe Taper Threads Short Thread Type S-PT 1/16-28 S-PT-1/16 1 Piece

Catalog number: S-PT-1/16 Features: ● Short thread type tap for pipe taper threads. Applications: ● Workpiece: Medium and high carbon steel, cast steel, cast iron, ductile cast iron, alloy steel. Specifications: ● Precision: JIS Class 2 ● Nominal size: 1/16 ● Number of threads: 28 ● Thread length (mm): 16.5 ● Total length (mm): 55 ● Shank diameter (mm): 8 ● Shank square section (mm): 6 ● Pilot hole diameter (mm): 6.2 ● Machined thread: Taper thread ● Number of engaging threads: 2.5 ● Surface treatment: Non-coated ● Length to reference diameter (mm): 10.5 ● Tap grade: JIS grade ● Type of female thread: Rc, PT Material/Finish: ● High speed tool steel (HSS)
