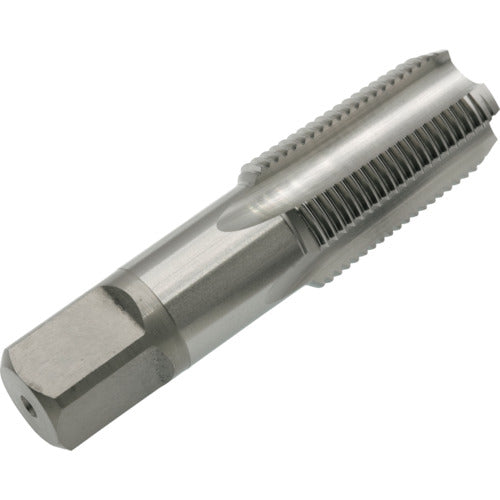

Yamawa Hand Tap for Pipe Taper Threads Long Thread Type PT 1/16-28 PT2-1/16 1 Piece

Catalog number: PT2-1/16 Features: ●For machining tapered threads when connecting pipe parts, etc. Applications: ●Workpiece: Medium and high carbon steel, cast steel, cast iron, ductile cast iron, alloy steel. Specifications: ●Precision: JIS Class 2 ●Nominal size: 1/16 ●Number of threads: 28 ●Thread length (mm): 19 ●Total length (mm): 55 ●Shank diameter (mm): 8 ●Shank square section (mm): 6 ●Drill hole diameter (mm): 6.2 ●Machined thread: Tapered thread ●Number of engaging threads: 2.5 ●Surface treatment: Non-coated ●Length to reference diameter (mm): 13 ●Tap grade: JIS grade Material/Finish: ●High-speed tool steel (HSS)
