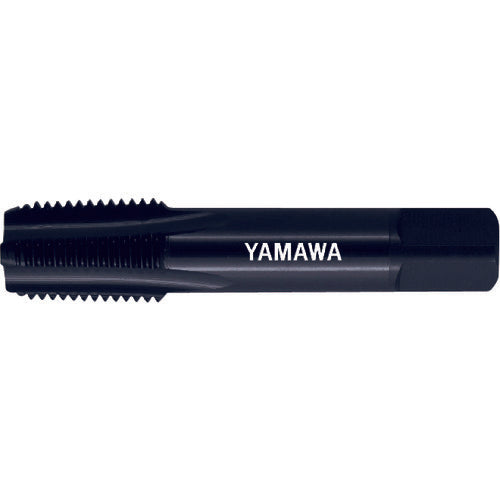

Yamawa Hand Tap for Pipe Taper Threads, Low Carbon Steel, Short Thread Type, LC-S-PT 1/2-14 LC-S-PT-1/2-14 1 Piece

Catalog number: LC-S-PT-1/2-14 Features: ●Short thread tap suitable for threading of mild steel (low carbon steel) such as SS400 and S28C. Applications: ●Workpiece: Low carbon steel, cast steel. Specifications: ●Precision: JIS Class 2 ●Nominal size: 1/2 ●Number of threads: 14 ●Thread length (mm): 27 ●Total length (mm): 80 ●Shank diameter (mm): 18 ●Shank square section (mm): 14 ●Pilot hole diameter (mm): 17.6 ●Machined thread: Tapered thread ●Number of engagement threads: 2.5 ●Surface treatment: Oxidation treatment ●Length to reference diameter (mm): 17 ●Number of grooves: 4 grooves ●Number of grooves: 4 ●Length of shank square section: 17mm Material/Finish: ●High speed tool steel (HSS)
